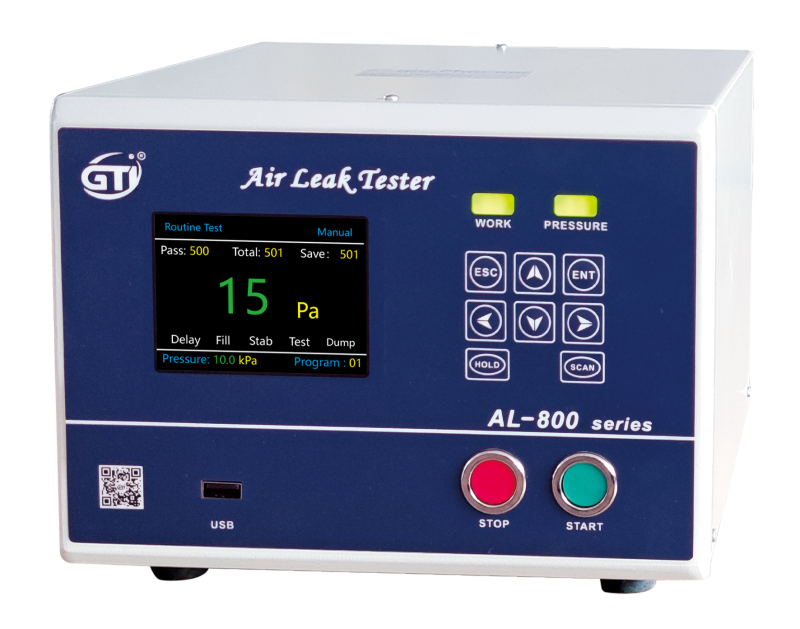

Air Leak Tester AL-800 Series
• High sensitivity and minor pressure sensor
• The part of air- turning is designed simply with smaller internal volume
• Leak units: ml/ min (optional)
• 3.5 inch color LCD with clear interface
• 99 groups of channels independently set parameters
• Compact structure, light weight and small size
• Master USB: USB key to transfer 9999 groups data
- GTI
- China
- One week
- Strong
Details
Introduction

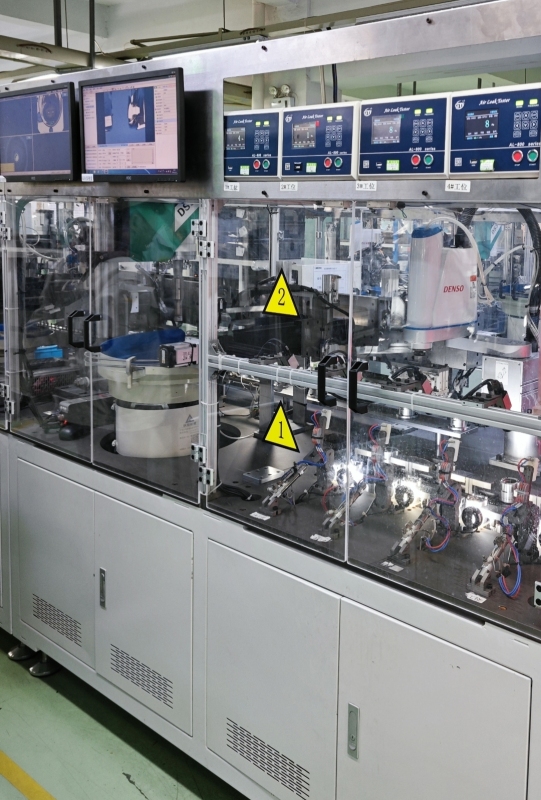

A low- pressure differential pressure leak tester. AL- 800 is developed and researched by our company according to the national standards and industry standards of the gas appliance industry. The instrument adopts high- sensitivity differential pressure sensor, color LCD display, English and Chinese interface. It not only owns the advantages of small size, accurate test, simple operation and quick response, but also is suitable for on-line testing of products. Moreover, it is certainly an ideal instrument for supporting equipment.
Applications
• Gas appliances: gas cookers, plug valves, pressure regulators, solenoid valves, proportional valves, stoves, etc.
• Others: carburetor, motorcycle engine, automobile,kettles, washing pumps, medical products, food packaging, anti-water motor, car lights, etc.
Models Classification
Models | Testing Pressure | Resolution |
AL-800 | 3 ~ 50kPa | 1Pa or 0.001mL/min |
AL-800D | 3 ~ 50kPa | 1Pa or 0.001mL/min |
Specifications
Model | AL-800 | |
Test Pressure Measurement | Accuracy | ±0.5%FS |
Testing Range | (-999 ~+999) Pa | |
Sensor Pressure | 2MPa | |
Pressure | Range | (3.0~50.0) kPa |
Resolution | 0.1kPa | |
Air Flow | Work-piece Volume | ≤9.999 L |
Range | (- 9.999 ~+9.999) mL/min | |
Time | Setting Range | (0~99.9) s |
Resolution | 0.1s | |
Setting Data | Channel、pressure time、balance time、 testing time、Pressure upper and lower limit、 work- piece volume/the base limit、clear coefficient | |
Channel Storage | 16- group channel setting | |
Data Storage | 9999 groups on USB key | |
External input | 7- channel | |
External output | 8- channel | |
Bubble Function | Continuous inflation for leak detection | |
Judgment limit setting | Pressure judgment, detection result judgment | |
Temperature | (5~40) ℃ (operating) | |
Humility | ≤85%RH（no condensing） | |
Power Supply Voltage | AC110~220V±10% 50Hz | |
Pressure Source | Dry and clean compressed air with ≥0.2MPa and fluctuation range not greater than ±0.01MPa | |
Connector Size | G 1/4'' | |
Weight | Approx.9kg | |
Dimensions | 220mm×175mm×417mm（W×H×D） | |
